shakotay2 wrote: ↑Thu Nov 18, 2021 10:49 pm 1st part, for the next part I'll need some trick (again ):
.
and 2nd part (little bit tired of "tricks" )

dimis9138 wrote: ↑Fri Nov 19, 2021 6:31 pmWhat is this magic tricks?

shakotay2 wrote: ↑Fri Nov 19, 2021 6:53 pm

dimis9138 wrote: ↑Fri Nov 19, 2021 6:31 pmWhat is this magic tricks?

It's "trying to understand" the structure of the face indices block and writing some code lines to get proper FIs.
(The "magic" is that I didn't really understand it, but worked. )

mariokart64n wrote: ↑Sun Nov 21, 2021 5:43 am

Code: Select all

struct fmtINF {
    uint32_t                                                 num_vertices;
    uint32_t                                                 num_triangles;
    float*                                                     vertices;
    float*                                                     tvertices;
    float*                                                     normals;
    uint16_t*                                                 nor_triangles;
    uint16_t*                                                 ver_triangles;
    uint32_t*                                                 unk_triangles;
    bool read (char* &f, size_t &pos, size_t &fsize, std::string &fpath, std::string &fname) {
        bool sucess                                         = false;
        num_vertices                                         = readlong(f, pos);
        num_triangles                                         = readlong(f, pos);
        std::string verFile                                 = fpath + fname + ".ver";
        std::string norFile                                 = fpath + fname + ".nor";
        std::string triFile                                 = fpath + fname + ".tri";
        if (num_vertices > 0) {
            if (f != NULL) {delete[] f; f = NULL; pos = 0;}
            if (openFile(f, fsize, verFile)) {
                vertices                                     = new float [num_vertices * 3];
                tvertices                                     = new float [num_vertices * 2];
                for (int i = 0; i < num_vertices; i++) {
                    vertices[i * 3]                         = readfloat(f, pos);
                    vertices[(i * 3) + 1]                     = readfloat(f, pos);
                    vertices[(i * 3) + 2]                     = readfloat(f, pos);
                    tvertices[i * 2]                         = readfloat(f, pos);
                    tvertices[(i * 2) + 1]                     = readfloat(f, pos);
                    }
                }
            if (f != NULL) {delete[] f; f = NULL; pos = 0;}
            if (openFile(f, fsize, norFile)) {
                normals                                     = new float [num_vertices * 3];
                for (int i = 0; i < num_vertices; i++) {
                    normals[i * 3]                             = readfloat(f, pos);
                    normals[(i * 3) + 1]                     = readfloat(f, pos);
                    normals[(i * 3) + 2]                     = readfloat(f, pos);
                    }
                }
            sucess                                             = (num_vertices > 0) || sucess;
            }
        if (num_triangles > 0) {
            if (f != NULL) {delete[] f; f = NULL; pos = 0;}
            if (openFile(f, fsize, triFile)) {
                nor_triangles                                 = new uint16_t [num_triangles * 3];
                ver_triangles                                 = new uint16_t [num_triangles * 3];
                unk_triangles                                 = new uint32_t [num_triangles];
                for (int i = 0; i < num_triangles; i++) {
                    ver_triangles[i * 3]                     = readshort(f, pos);
                    nor_triangles[i * 3]                     = readshort(f, pos);
                    ver_triangles[(i * 3) + 1]                 = readshort(f, pos);
                    nor_triangles[(i * 3) + 1]                 = readshort(f, pos);
                    ver_triangles[(i * 3) + 2]                 = readshort(f, pos);
                    nor_triangles[(i * 3) + 2]                 = readshort(f, pos);
                    unk_triangles[i]                         = readlong(f, pos);
                    }
                }
            sucess                                             = (num_triangles > 0) || sucess;
            }
        return sucess;
        }
    };

Edit:
Sorry forgot to explain what this is, this is my struct that I wrote in c++

I've included a 7-Zip containing the code::blocks project file which can be used to recompile the project if need be.
Unfortunately it's using some window libraries to handle i/o so it has a dependency on windows.h

The compiled binary should be in the project folder under ./bin/release/*.exe

You can either call it through command line such as <exe> <file.inf>, drag and drop, or simply double click the exe and hope for the best.

The inf and its daughter files are required to be in the same location and a new wavefront obj should be created in the same location.

It should be noted that I didn't understand the indices in the *.tri file so something probably isn't right :\

JaKeN525 wrote: ↑Fri Nov 26, 2021 8:26 pm that's cool!

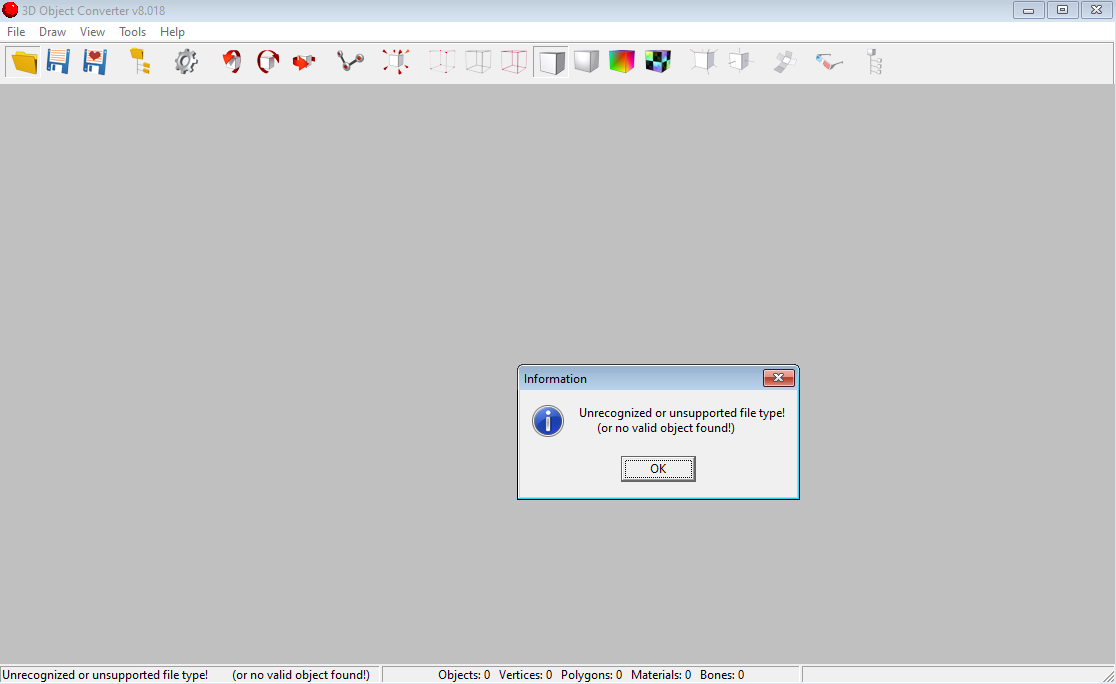

but there are models without .nor files and they don't open. what to do?

these are the files:
https://mega.nz/folder/yeRHQYiD#4IZUNYH7oFASZYlpSLudPg

Karpati wrote: ↑Sat Nov 27, 2021 12:09 pm

JaKeN525 wrote: ↑Fri Nov 26, 2021 8:26 pm that's cool!
but there are models without .nor files and they don't open. what to do?

these are the files:
https://mega.nz/folder/yeRHQYiD#4IZUNYH7oFASZYlpSLudPg

My program does not use the .nor file, but it checks the .inf file size (8 bytes).
Your sample .inf file has 12 bytes.

Unfortunately I have checked the cars folder's files only, your sample file comes from the track folder.
