Hello im new in the forum
> i already download the ISO game and extract all with XBOX 360 ISO Extract
> i was try use the nijaRiper with Xena 360 pc emulator but look is not compatible
> i try use the Unreal Engine Viwer umodel_64.exe dwonload ithe https://www.gildor.org/ but noting

and all that i look is .BIN files how can i open and get the 3d models
also i add the folder that i think that models can be there if someone want to try


https://drive.google.com/file/d/1BBrR-X ... sp=sharing

First rule to the beginers: don't ever trust the file extensions or to use any tools that deal with files of the same extensions unless you know what you're doing. And maybe try to reduce the size of your uploaded samples next time to avoid traffic waste and make it easier for anyone who'd like to check them.

The bin files are obviously compressed. Here's a BMS script to unpack them:

Using AXE on the unpacked aya_dayu.NDXR from "aya_dayu/aya_dayu.BIN":

>> OH my thanks a lot Bigchillghost
I was losing hope that someone will answer me in this forum or in some other.
> I have more than 4 days looking everywhere I really appreciate it

Bigchillghost wrote: ↑Wed Aug 25, 2021 10:39 am Using AXE on the unpacked aya_dayu.NDXR from "aya_dayu/aya_dayu.BIN":aya_dayu.NDXR.png

AH im stuck again
> i dowload the quickbms from this page http://aluigi.altervista.org/quickbms.htm s

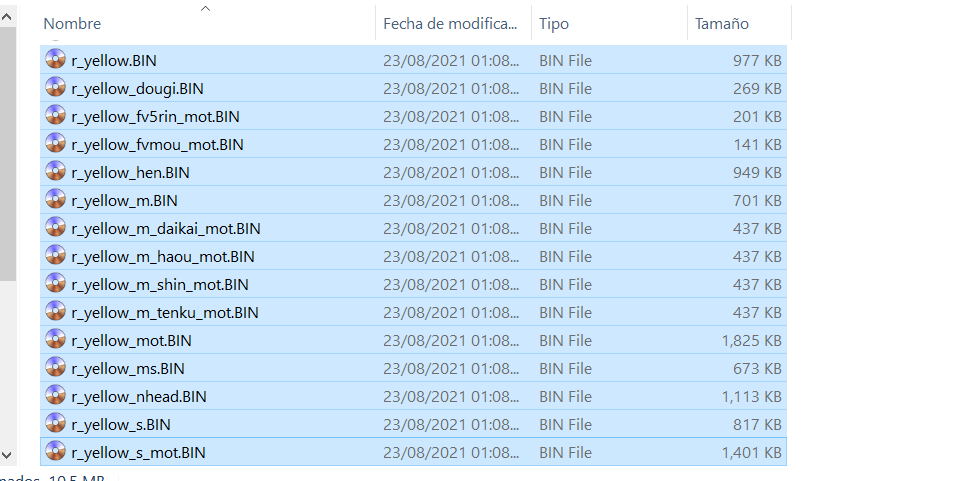

i select the script that you add in the post then i select all the files that say r_yellow https://i.gyazo.com/6fd9eb3b87cbfc9d6af ... eeeb1d.png so i got this https://i.gyazo.com/871d6fd8a829ad64f5f ... cc593d.png
then I google the tool "advancer mesh reaper - xtream edtion" but i dont found the same tool that you add inthe picutres

when i try the file .nfxr o .ntrx dont works
https://i.gyazo.com/0b9089102eac79be4c8 ... 8d260e.png

https://i.gyazo.com/1c61f7f4649f727371d ... 35312a.png

i add the files

https://drive.google.com/file/d/1h1ZMRj ... sp=sharing

Ripernoob1 wrote: ↑Fri Aug 27, 2021 11:41 pm then I google the tool "advancer mesh reaper - xtream edtion" but i dont found the same tool that you add inthe picutres

Check the 2nd link in my signature.

Ripernoob1 wrote: ↑Fri Aug 27, 2021 11:41 pm when i try the file .nfxr o .ntrx dont works

It's not a tool for specific game so you definitely can NOT just open the file without specifying any parameters and expect that it'll work.
There're 5 submeshes in this file but as a quick workaround I just assigned different materials to the polygons:
You can check the tutorials through the 1st link in my signature and read the demonstration on how to use AXE through the link on its release page.

FYI, here's the PLC file for that sample you uploaded:
Just place it into the same directory where r_yellow.NDXR resides and open it through the "Open" button within the "Parameter List" group box. To preview the mesh you must "Load" the paramters first and check the "From Parameter Sets" check box at the lower right corner. Then you can hit the "Preview" button to preview the mesh or the UV. To export the model just navigate to the menu "File" then select "Export from List".
