HELP with Switch Textures (*.dds, *.png, *.tga)

[Kva3imoda]

I have textures from the console Torchlight 2 game.

Textures example: https://yadi.sk/d/uMjQmMvBFyx2xA
Switch textures have "_" sign in titles, unsigned - original PC textures.

But I don’t understand how to convert this to the usual format.

ScarletConvert-v123 gives me this:


I believe that daemon1's "Raw texture cooker" can help me, but I don’t know how to work with patterns and how to find the right settings.

[Kva3imoda]

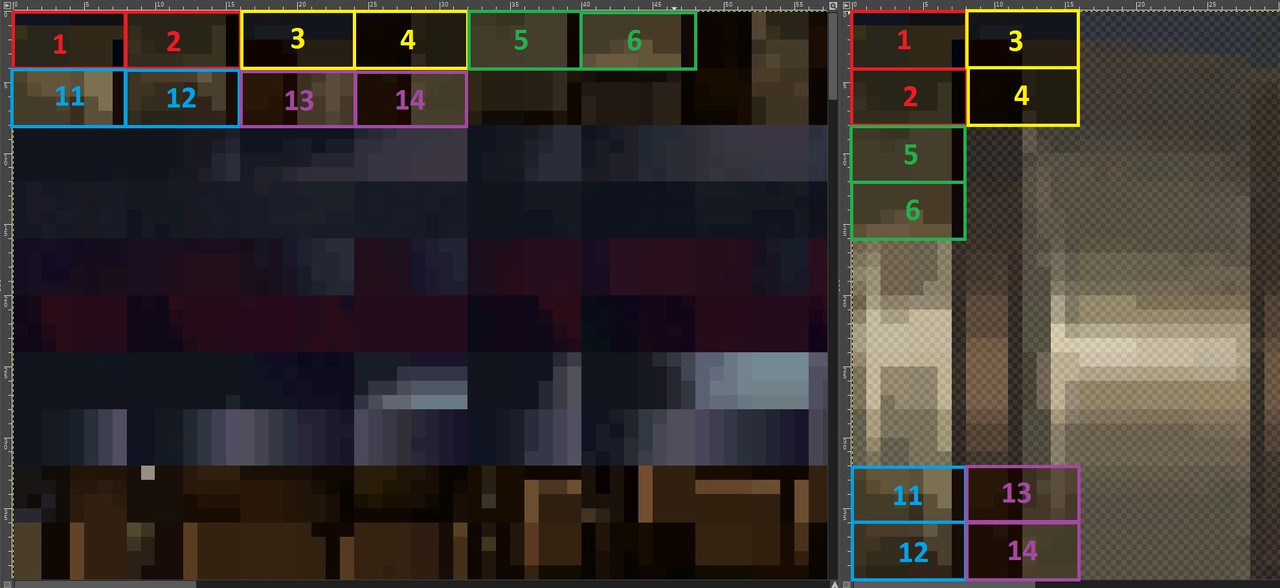

If this helps, here 8*4 pixel blocks are laid out this way:

[Kva3imoda]

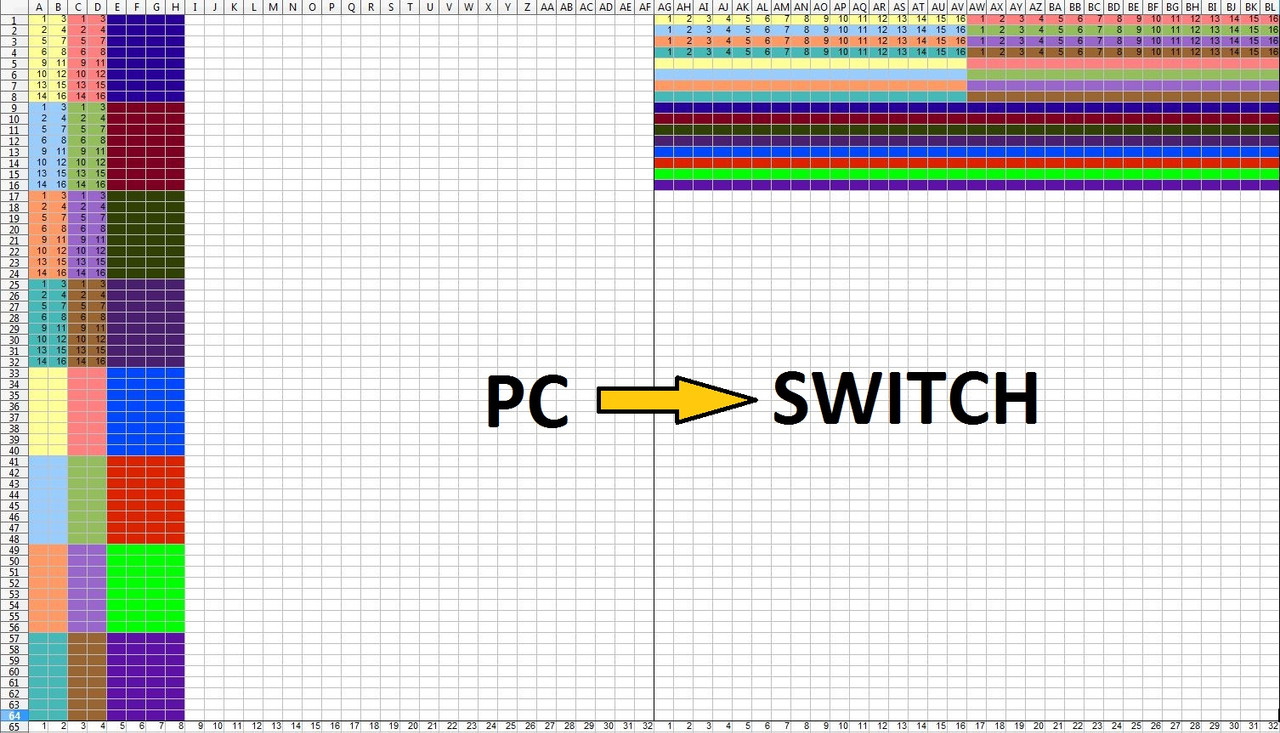

More detailed scheme:



It's time to get into a hex-editor

[Kva3imoda]

Ok, I think I understand how this "Raw texture cooker" works.

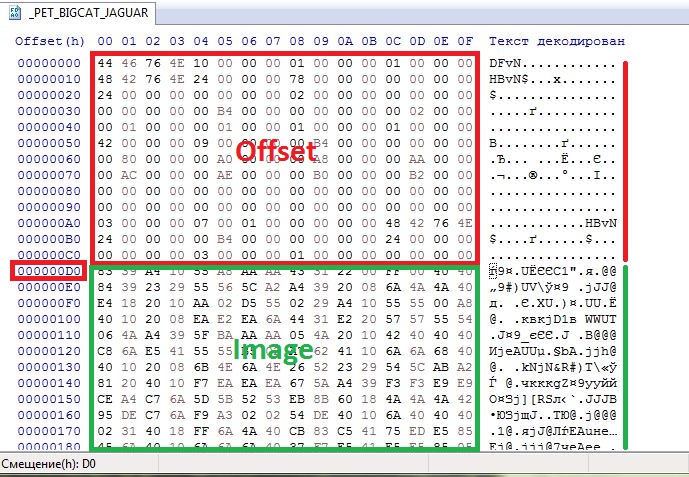

The main problem is that I did not understand what offset means until I looked at the file structure in hex- editor.

[Kva3imoda]

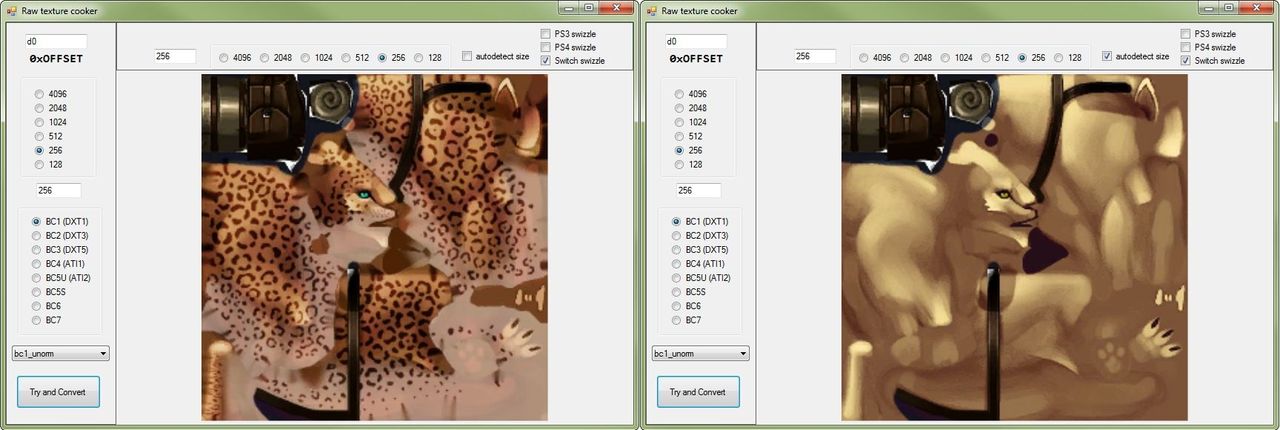

Ок, everything seems to work out for me. Still have questions with tga files.
Thanks to everyone who read. Many thanks to @daemon1 for "Raw texture cooker" utility.

[Kva3imoda]

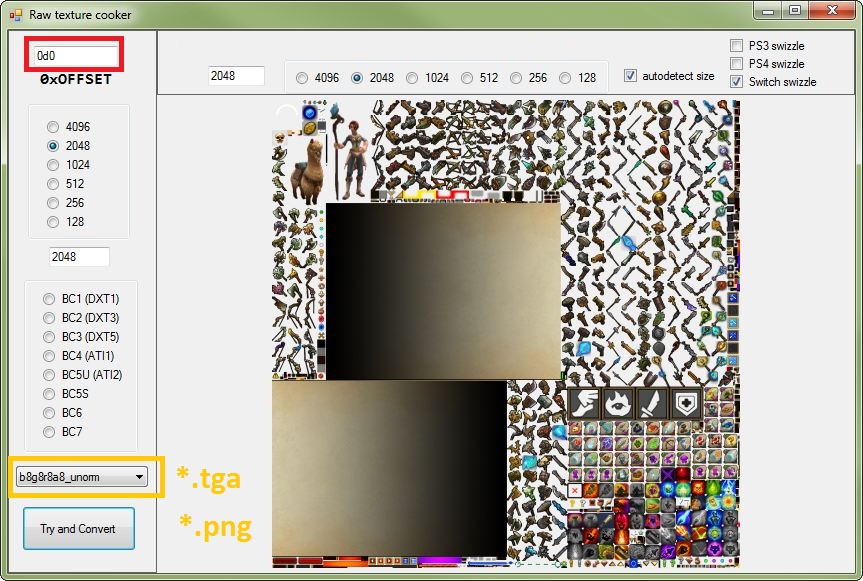

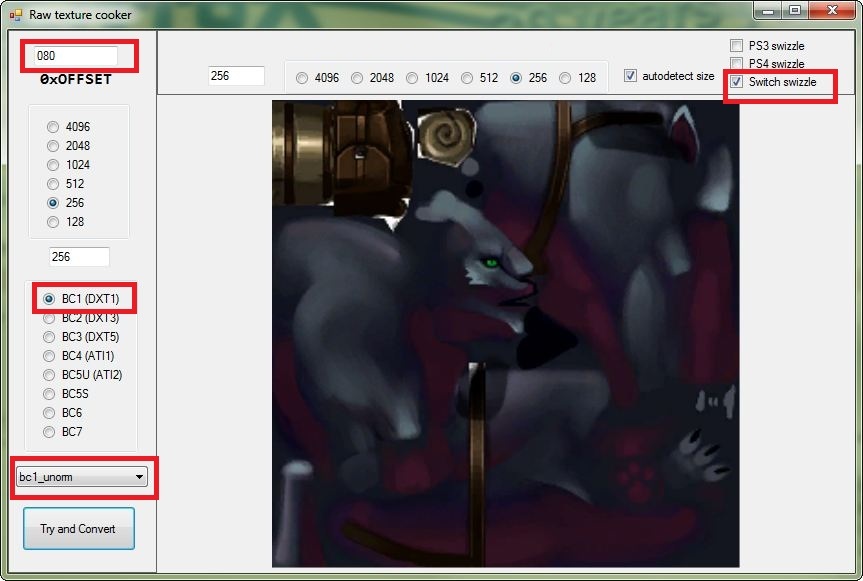

If it helps someone else, that's how I chose the Offset.



As I understand it, for *.dds you need "BC"-options, for *.png,*.tga - something like "b8g8r8a8"-options or similar. I understand that every problem is individual, but in my case it works.



Of course, I don’t know what all these options mean and how these work, but maybe this information will help someone find the right solution in the future.
