Asphalt 9: Legends Jtex|Jmox Convertor(A9Tool)

Post questions about game models here, or help out others!
User avatar
Bigchillghost
ultra-veteran
ultra-veteran
Posts: 547
Joined: Tue Jul 05, 2016 9:37 am
Has thanked: 22 times
Been thanked: 463 times

Re: Asphalt 9: Legends Jtex|Jmox Convertor(A9Tool)

Post by Bigchillghost » Mon Dec 31, 2018 4:35 am

Works fine.
Havn't checked v1.4.1?
You do not have the required permissions to view the files attached to this post.
May you find peace in this puzzle-solving game. Say it with action: click the Image when you get helped.:)

User avatar
taruncreation
advanced
Posts: 46
Joined: Fri Aug 26, 2016 11:17 am
Location: India
Has thanked: 25 times
Been thanked: 7 times
Contact:

Re: Asphalt 9: Legends Jtex|Jmox Convertor(A9Tool)

Post by taruncreation » Mon Dec 31, 2018 6:39 am

Bigchillghost wrote:Works fine.
Havn't checked v1.4.1?
Oh...actually I wanted to but was unable to download it yesterday.It said "You are not authorised to download this".
But one question how did you got the parts at correct positions?I mean in my rip the doors and wing is hanging somewhere else at a different place.
EVERYONE WANTS HAPPINESS,NO ONE WANTS PAIN
BUT YOU CAN'T HAVE A RAINBOW WITHOUT A LITTLE RAIN...

User avatar
Bigchillghost
ultra-veteran
ultra-veteran
Posts: 547
Joined: Tue Jul 05, 2016 9:37 am
Has thanked: 22 times
Been thanked: 463 times

Re: Asphalt 9: Legends Jtex|Jmox Convertor(A9Tool)

Post by Bigchillghost » Mon Dec 31, 2018 7:20 am

taruncreation wrote:But one question how did you got the parts at correct positions?I mean in my rip the doors and wing is hanging somewhere else at a different place.
Just rotate the dummy bones of the doors towards the corresponding directions by 220 degrees, or simply set the rotations along y axis to their opposite. Apply similar operations on the rest of them. In Max with angle snap toggled it's a lot easier.
May you find peace in this puzzle-solving game. Say it with action: click the Image when you get helped.:)

User avatar
taruncreation
advanced
Posts: 46
Joined: Fri Aug 26, 2016 11:17 am
Location: India
Has thanked: 25 times
Been thanked: 7 times
Contact:

Re: Asphalt 9: Legends Jtex|Jmox Convertor(A9Tool)

Post by taruncreation » Tue Feb 12, 2019 5:49 am

Hi there,

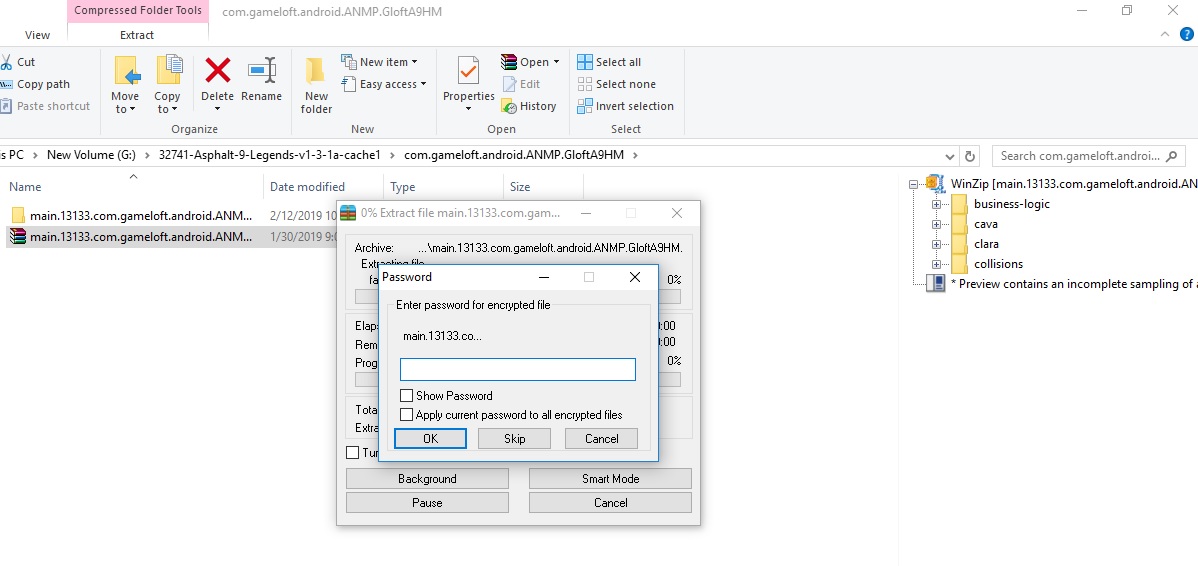

In the latest update the zip is password protected.Any way to bypass it??

EVERYONE WANTS HAPPINESS,NO ONE WANTS PAIN
BUT YOU CAN'T HAVE A RAINBOW WITHOUT A LITTLE RAIN...

User avatar
Bigchillghost
ultra-veteran
ultra-veteran
Posts: 547
Joined: Tue Jul 05, 2016 9:37 am
Has thanked: 22 times
Been thanked: 463 times

Re: Asphalt 9: Legends Jtex|Jmox Convertor(A9Tool)

Post by Bigchillghost » Tue Feb 12, 2019 6:33 am

I wouldn't know. Tried skipping the password directly?
May you find peace in this puzzle-solving game. Say it with action: click the Image when you get helped.:)

User avatar
Bigchillghost
ultra-veteran
ultra-veteran
Posts: 547
Joined: Tue Jul 05, 2016 9:37 am
Has thanked: 22 times
Been thanked: 463 times

Re: Asphalt 9: Legends Jtex|Jmox Convertor(A9Tool)

Post by Bigchillghost » Tue Feb 12, 2019 8:11 am

The graphic files are not encrypted. Use the lastest version of the Zip64Unpacker.
May you find peace in this puzzle-solving game. Say it with action: click the Image when you get helped.:)

TheRealPcGamer
ultra-n00b
Posts: 1
Joined: Thu Feb 14, 2019 6:28 am

Re: Asphalt 9: Legends Jtex|Jmox Convertor(A9Tool)

Post by TheRealPcGamer » Thu Feb 14, 2019 6:30 am

How to download your tool ?
(I am very new to this community)

nougat2018
ultra-n00b
Posts: 3
Joined: Thu Apr 04, 2019 9:36 pm
Has thanked: 3 times

Re: Asphalt 9: Legends Jtex|Jmox Convertor(A9Tool)

Post by nougat2018 » Sat Apr 06, 2019 7:28 pm

How can I unzip the Android obb?

User avatar
mclarenp20
ultra-n00b
Posts: 6
Joined: Sat Apr 20, 2019 2:53 am

Re: Asphalt 9: Legends Jtex|Jmox Convertor(A9Tool)

Post by mclarenp20 » Sat Apr 20, 2019 9:07 am

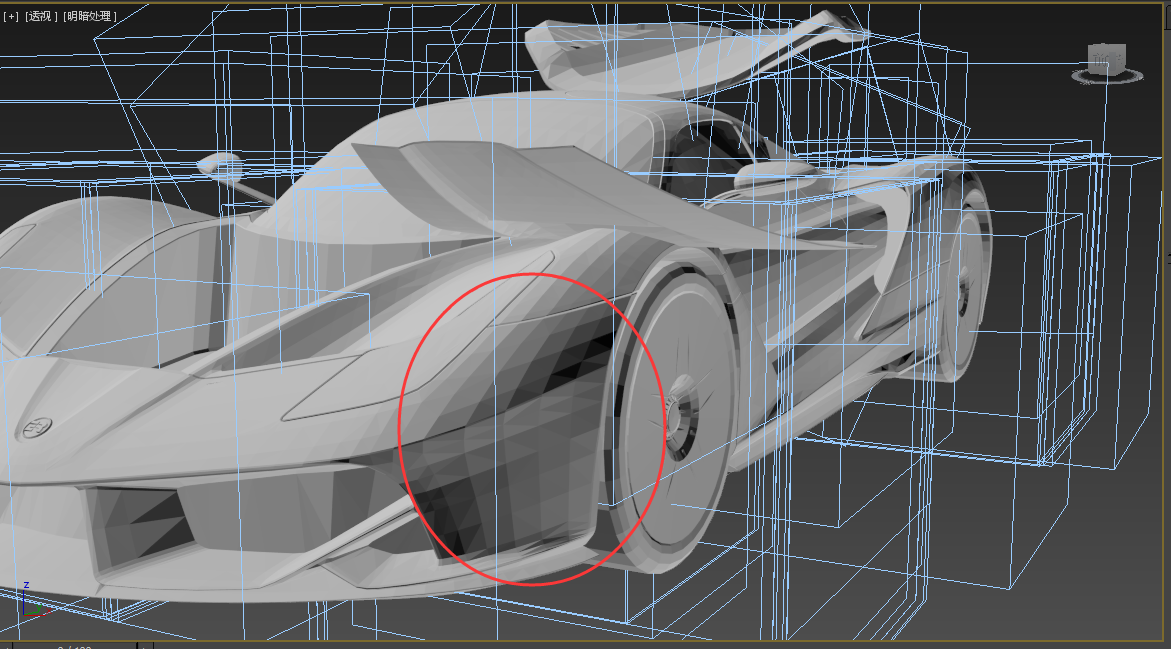

Hello, Author, which key should I press to smooth these surfaces? It looks like the converted model is terrible. Could you help me ? Thanks. :) :)

User avatar
mclarenp20
ultra-n00b
Posts: 6
Joined: Sat Apr 20, 2019 2:53 am

Re: Asphalt 9: Legends Jtex|Jmox Convertor(A9Tool)

Post by mclarenp20 » Sat Apr 20, 2019 10:27 am

And errors in PVR filesImage [roll] [roll]

User avatar
Bigchillghost
ultra-veteran
ultra-veteran
Posts: 547
Joined: Tue Jul 05, 2016 9:37 am
Has thanked: 22 times
Been thanked: 463 times

Re: Asphalt 9: Legends Jtex|Jmox Convertor(A9Tool)

Post by Bigchillghost » Fri May 03, 2019 12:14 pm

First thing first, tool updated to v1.4.3!

Changes:
1. The normal vectors in later version is now supported, meshes having no normals will still look the same;
2. Added inner batch process options to the config file, which is much faster. Don't turn it on if you need the drag & drop procedure only.

Since I still couldn't figure out the non-linear encoding of this 2-byte normals format, I just came up with another space-consuming but effective solution: generating a normals mapping database from this encoding, to an earlier game version. Therefore, it makes the tool much heavier so I have to split it into 2 parts to overcome the 256KB limitation. Here, it's just for the normals mapping database.

The normals in this database are resampled from the earlier version as signed-8-bit integers. They are mapping to the new format by considering the 2-byte normals as an unsigned-16-bit little-endian index. So for a 2-byte normal vector encoded as 01 00, you should be looking for the second element in this database. If anyone is interested in it and feel like to figure out the encoding, be my guest. I'm just glad that I don't have to worry about it any more. :D
You do not have the required permissions to view the files attached to this post.
May you find peace in this puzzle-solving game. Say it with action: click the Image when you get helped.:)

User avatar
mclarenp20
ultra-n00b
Posts: 6
Joined: Sat Apr 20, 2019 2:53 am

Re: Asphalt 9: Legends Jtex|Jmox Convertor(A9Tool)

Post by mclarenp20 » Sat May 04, 2019 7:27 am

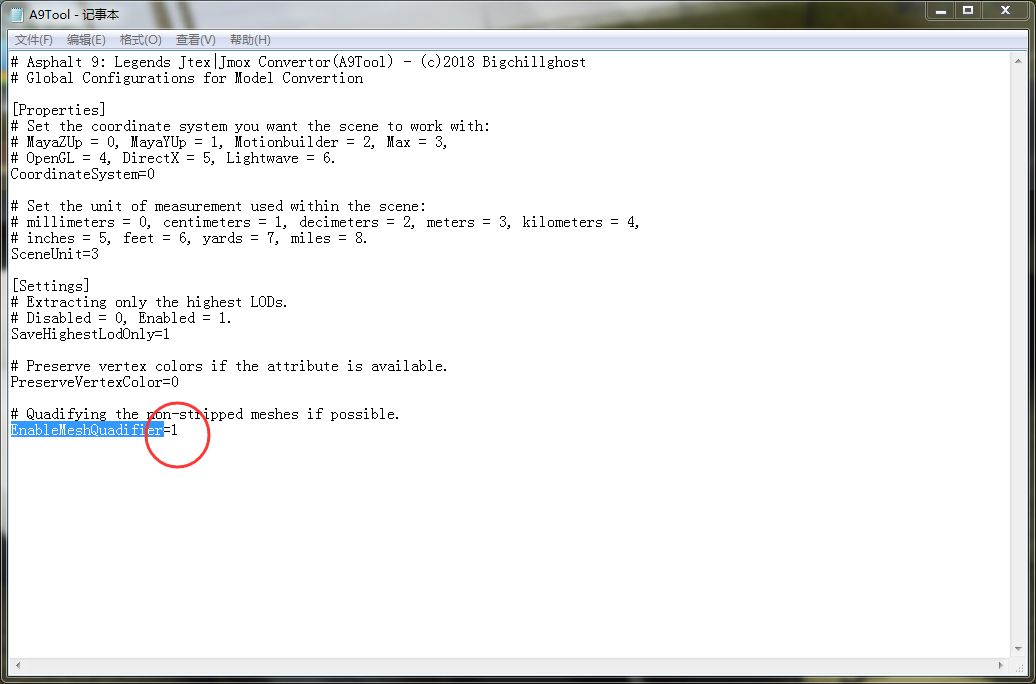

Unfortunately, this configuration of Enable Mesh Quadifier does not work.Image

oldman
n00b
Posts: 18
Joined: Sun Jun 18, 2017 7:54 pm
Has thanked: 2 times
Been thanked: 5 times

Re: Asphalt 9: Legends Jtex|Jmox Convertor(A9Tool)

Post by oldman » Sat May 04, 2019 10:46 pm

the tool works good... :up:

the UV channels work too. FBX import and render with 3ds Max 2016. Smoothing in mesh is okay ... :up:
.
.
You do not have the required permissions to view the files attached to this post.
I am old, but not my mind (:

JONATHANTKB
beginner
Posts: 24
Joined: Mon Nov 24, 2014 5:24 am
Has thanked: 5 times
Been thanked: 1 time

Re: Asphalt 9: Legends Jtex|Jmox Convertor(A9Tool)

Post by JONATHANTKB » Sat May 11, 2019 3:42 am

this work in Asphalt: Street Storm Racing??

User avatar
taruncreation
advanced
Posts: 46
Joined: Fri Aug 26, 2016 11:17 am
Location: India
Has thanked: 25 times
Been thanked: 7 times
Contact:

Re: Asphalt 9: Legends Jtex|Jmox Convertor(A9Tool)

Post by taruncreation » Tue Jun 18, 2019 6:23 pm

A new update of A9 is out but looks like it's using Unity files now...
EVERYONE WANTS HAPPINESS,NO ONE WANTS PAIN
BUT YOU CAN'T HAVE A RAINBOW WITHOUT A LITTLE RAIN...

Post Reply
