Heaven of the three kingdoms

Post by chrrox »

Here is a max script to import these models I only tested it on this model I attached here so if it does not work on other models let me know.

Max script save into a text document and give it the extension .ms

Code: Select all

if (heapSize < 20000000) then
	heapSize = 40000000 -- allow ~ 40 MB instead of just 7.5 MB. Prevents "Runtime Error: Out of scripter memory"

fname = GetOpenFileName caption:"Open Clare3d Model File" types:"Clare3d Model File(*.c3m)|*.c3m"
f = fopen fname "rb"   --open file in read only format
p = getFilenamePath fname


fseek f 0x20 #seek_set
Count1 = readlong f
Null1 = readlong f
Count2 = readlong f
Null2 = readlong f
Null3 = readlong f
Null4 = readlong f
Count3 = readlong f
MeshNumber = readlong f
VertCount = readlong f
FaceCount = readlong f

fn readword fstream = (
return (readshort fstream #unsigned)
)
VertexOffset = ftell f
fseek f (0x20 * VertCount)#seek_cur
FaceOffset = ftell f
fseek f (0x2 * FaceCount)#seek_cur
TableOffset = ftell f

for aa = 1 to MeshNumber do (
Vert_array = #()    --define arrays for verts, normals, UV and Faces
Normal_array = #()
UV_array = #()
Face_array = #()
Mesh_array = #()
fseek f TableOffset #seek_set
fseek f 0x44 #seek_cur
VertOffsetAdd = readlong f
FaceOffsetAdd = readlong f
VertCountAdd = readlong f
FaceCountAdd = readlong f
float1 = readfloat f
float2 = readfloat f
float3 = readfloat f
Null1 = readlong f
Null2 = readlong f
DiffuseTexture = readstring f
skipbytes = 0x20 - DiffuseTexture.count - 1
fseek f skipbytes #seek_cur
fseek f 0x20 #seek_cur
append Mesh_array VertOffsetAdd
append Mesh_array FaceOffsetAdd
append Mesh_array VertCountAdd
append Mesh_array FaceCountAdd
append Mesh_array DiffuseTexture
TableOffset = ftell f

fseek f ((Mesh_array[1] * 0x20) + VertexOffset)#seek_set
for i = 1 to Mesh_array[3] Do (
vx = readfloat f     --read xyz coordinates
vy = readfloat f
vz = readfloat f
append Vert_array [vx,vy,vz] --save verts to Vert_array
        --since UV in Max are in point3 format, so we add 0 for z value
nx = readlong f    --read Normal ??
ny = readlong f
nz = readlong f
append Normal_array [nx,ny,nz] --save normals to Normal_array
tu = readfloat f     --read UV float value
tv = (readfloat f) * -1
append UV_array [tu,tv,0]  --save UVs to UV_array
)
fseek f ((Mesh_array[2] * 0x2) + FaceOffset)#seek_set
for i = 1 to Mesh_array[4] / 3 Do (

f1 = (readword f) + 1   --read face indices, games are start form 0, but Max start from 1
f2 = (readword f) + 1   --so we add 1 to each index
f3 = (readword f) + 1
append Face_array [f1,f2,f3] --save faces to Face_array
)
msh = mesh vertices:Vert_array faces:Face_array
msh.numTVerts = UV_array.count
buildTVFaces msh
msh.material = meditMaterials[aa]
meditMaterials[aa].name = Mesh_array[5]
meditMaterials[aa].diffuseMap = Bitmaptexture fileName:(p + Mesh_array[5] + ".dds")
meditMaterials[aa].opacityMap = copy meditMaterials[aa].diffuseMap
meditMaterials[aa].diffuseMap.alphaSource = 2
meditMaterials[aa].opacityMap.monoOutput = 1
meditMaterials[aa].opacityMapEnable = on

for j = 1 to UV_array.count     do setTVert  msh j UV_array[j]
for j = 1 to Face_array.count   do setTVFace msh j Face_array[j]
for j = 1 to Normal_array.count do setNormal msh j Normal_array[j]
)
actionMan.executeAction 0 "40021"  -- Selection: Select All
modPanel.addModToSelection (Normalmodifier ()) ui:on
$Object01.modifiers[#Normal].flip = on
actionMan.executeAction 0 "311"  -- Tools: Zoom Extents All Selected
clearSelection()
actionMan.executeAction 0 "63508"  -- Views: Standard Display with Maps
fclose f     --close file
http://three.hanbiton.com/Home/Home.aspx
You do not have the required permissions to view the files attached to this post.
Last edited by chrrox on Tue Jan 19, 2010 2:01 pm, edited 1 time in total.
Top
chrrox
Moderator
Posts: 2602
Joined: Sun May 18, 2008 3:01 pm
Has thanked: 57 times
Been thanked: 1398 times

Re: Heaven of the three kingdoms

Post by chrrox »

script has been updated corrected a small bug with texture name length.
You do not have the required permissions to view the files attached to this post.
Top
wjh12338093
beginner
Posts: 20
Joined: Thu May 01, 2014 2:12 pm
Has thanked: 1 time

Re: Heaven of the three kingdoms

Post by wjh12338093 »

Hello, I extract The heaven of three kingdoms file is not c3m format, isn't it The same game?

Translation of English, I'm sorry

This is my unzip the files:

http://www.4shared.com/rar/qRGL0UuKba/npc.html

it is .gmd,gsi,gut,gutx.
Top
troll1981
n00b
Posts: 18
Joined: Mon Jun 09, 2014 7:28 pm
Has thanked: 1 time

Re: Heaven of the three kingdoms

Post by troll1981 »

sorry, on the link for download Client are much errors, you need an Korea Pass for registering, but 1% of europe people has that, chroox can you send us an link to download the Client for unpacking that ?

or can you upload on mega or other upload company!

Nice greetings and thanks for help
Top
User avatar
CriticalError
double-veteran
double-veteran
Posts: 678
Joined: Sun Jul 05, 2009 2:03 am
Has thanked: 104 times
Been thanked: 41 times

Re: Heaven of the three kingdoms

Post by CriticalError »

how unpack game files, is possible provide it? many thanks for support.
Top
wjh12338093
beginner
Posts: 20
Joined: Thu May 01, 2014 2:12 pm
Has thanked: 1 time

Re: Heaven of the three kingdoms

Post by wjh12338093 »

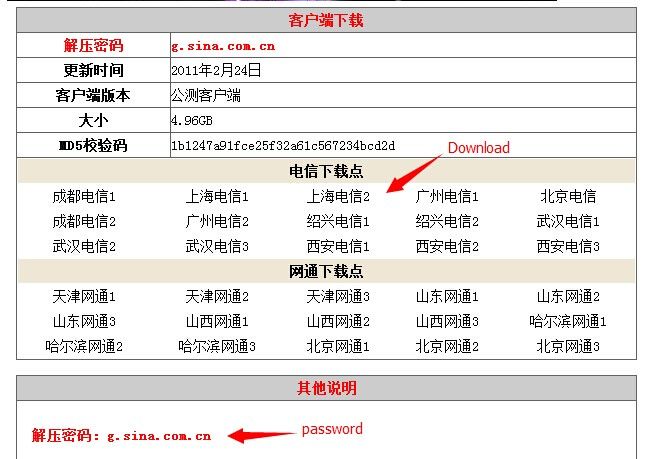

I here only one client connection in 2011, not the latest

client:

http://games.sina.com.cn/z/three/download.shtml

Unzip the files here, the author is fatduck

http://gameresearch.haotui.com/thread-398-1-1.html

Translation of English, I'm sorry
Top
wjh12338093
beginner
Posts: 20
Joined: Thu May 01, 2014 2:12 pm
Has thanked: 1 time

Re: Heaven of the three kingdoms

Post by wjh12338093 »

Anyone can crack a model?
Top
raykingnihong
mega-veteran
mega-veteran
Posts: 178
Joined: Sun Apr 06, 2014 8:06 pm
Has thanked: 215 times
Been thanked: 6 times

Re: Heaven of the three kingdoms

Post by raykingnihong »

chrrox wrote:Here is a max script to import these models I only tested it on this model I attached here so if it does not work on other models let me know.

Max script save into a text document and give it the extension .ms

Code: Select all

if (heapSize < 20000000) then
	heapSize = 40000000 -- allow ~ 40 MB instead of just 7.5 MB. Prevents "Runtime Error: Out of scripter memory"

fname = GetOpenFileName caption:"Open Clare3d Model File" types:"Clare3d Model File(*.c3m)|*.c3m"
f = fopen fname "rb"   --open file in read only format
p = getFilenamePath fname


fseek f 0x20 #seek_set
Count1 = readlong f
Null1 = readlong f
Count2 = readlong f
Null2 = readlong f
Null3 = readlong f
Null4 = readlong f
Count3 = readlong f
MeshNumber = readlong f
VertCount = readlong f
FaceCount = readlong f

fn readword fstream = (
return (readshort fstream #unsigned)
)
VertexOffset = ftell f
fseek f (0x20 * VertCount)#seek_cur
FaceOffset = ftell f
fseek f (0x2 * FaceCount)#seek_cur
TableOffset = ftell f

for aa = 1 to MeshNumber do (
Vert_array = #()    --define arrays for verts, normals, UV and Faces
Normal_array = #()
UV_array = #()
Face_array = #()
Mesh_array = #()
fseek f TableOffset #seek_set
fseek f 0x44 #seek_cur
VertOffsetAdd = readlong f
FaceOffsetAdd = readlong f
VertCountAdd = readlong f
FaceCountAdd = readlong f
float1 = readfloat f
float2 = readfloat f
float3 = readfloat f
Null1 = readlong f
Null2 = readlong f
DiffuseTexture = readstring f
skipbytes = 0x20 - DiffuseTexture.count - 1
fseek f skipbytes #seek_cur
fseek f 0x20 #seek_cur
append Mesh_array VertOffsetAdd
append Mesh_array FaceOffsetAdd
append Mesh_array VertCountAdd
append Mesh_array FaceCountAdd
append Mesh_array DiffuseTexture
TableOffset = ftell f

fseek f ((Mesh_array[1] * 0x20) + VertexOffset)#seek_set
for i = 1 to Mesh_array[3] Do (
vx = readfloat f     --read xyz coordinates
vy = readfloat f
vz = readfloat f
append Vert_array [vx,vy,vz] --save verts to Vert_array
        --since UV in Max are in point3 format, so we add 0 for z value
nx = readlong f    --read Normal ??
ny = readlong f
nz = readlong f
append Normal_array [nx,ny,nz] --save normals to Normal_array
tu = readfloat f     --read UV float value
tv = (readfloat f) * -1
append UV_array [tu,tv,0]  --save UVs to UV_array
)
fseek f ((Mesh_array[2] * 0x2) + FaceOffset)#seek_set
for i = 1 to Mesh_array[4] / 3 Do (

f1 = (readword f) + 1   --read face indices, games are start form 0, but Max start from 1
f2 = (readword f) + 1   --so we add 1 to each index
f3 = (readword f) + 1
append Face_array [f1,f2,f3] --save faces to Face_array
)
msh = mesh vertices:Vert_array faces:Face_array
msh.numTVerts = UV_array.count
buildTVFaces msh
msh.material = meditMaterials[aa]
meditMaterials[aa].name = Mesh_array[5]
meditMaterials[aa].diffuseMap = Bitmaptexture fileName:(p + Mesh_array[5] + ".dds")
meditMaterials[aa].opacityMap = copy meditMaterials[aa].diffuseMap
meditMaterials[aa].diffuseMap.alphaSource = 2
meditMaterials[aa].opacityMap.monoOutput = 1
meditMaterials[aa].opacityMapEnable = on

for j = 1 to UV_array.count     do setTVert  msh j UV_array[j]
for j = 1 to Face_array.count   do setTVFace msh j Face_array[j]
for j = 1 to Normal_array.count do setNormal msh j Normal_array[j]
)
actionMan.executeAction 0 "40021"  -- Selection: Select All
modPanel.addModToSelection (Normalmodifier ()) ui:on
$Object01.modifiers[#Normal].flip = on
actionMan.executeAction 0 "311"  -- Tools: Zoom Extents All Selected
clearSelection()
actionMan.executeAction 0 "63508"  -- Views: Standard Display with Maps
fclose f     --close file
http://three.hanbiton.com/Home/Home.aspx
Hi chrrox, I have clients that do not fit the script, can you give a client download link, thanks
Top
Szkaradek123
mega-veteran
mega-veteran
Posts: 292
Joined: Wed May 05, 2010 8:21 pm
Location: Poland Głogów
Has thanked: 21 times
Been thanked: 736 times

Re: Heaven of the three kingdoms

Post by Szkaradek123 »

Hi

Here is blender version of chrrox maxscript and support animation too.
It requires Blender version 249 and Python 26.

Steps:
1.unpack importer
2.run Blender249.blend
3.in Blender Text Window press alt+p and select gmd file
3.for animation select gam file

Game: viewtopic.php?p=95613#p95613
You do not have the required permissions to view the files attached to this post.
Top
raykingnihong
mega-veteran
mega-veteran
Posts: 178
Joined: Sun Apr 06, 2014 8:06 pm
Has thanked: 215 times
Been thanked: 6 times

Re: Heaven of the three kingdoms

Post by raykingnihong »

Szkaradek123 wrote:Hi

Here is blender version of chrrox maxscript and support animation too.
It requires Blender version 249 and Python 26.

Steps:
1.unpack importer
2.run Blender249.blend
3.in Blender Text Window press alt+p and select gmd file
3.for animation select gam file

Game: viewtopic.php?p=95613#p95613
Good news, thank you, Szkaradek123, the script is very good, we import model GMD files, but note that not all of the GMD is a model file, thanks again, Szkaradek123
Top
lolwatt
veteran
Posts: 141
Joined: Mon Sep 22, 2014 1:23 am
Has thanked: 71 times
Been thanked: 12 times

Re: Heaven of the three kingdoms

Post by lolwatt »

Here is the quickbms for the game, so you don't have to register on random chinese site:

Code: Select all

# Game: 三国之天
# Package: pfs
# by Fatduck Jun 2014
# script for QuickBMS http://quickbms.aluigi.org

idstring "XGFILESYSTEM\0"

get RESEND asize
savepos RESPOS
do
goto RESPOS
get ukn0 long
get RESTYPE long
getdstring RESNAME 0x100
get CSIZE long
get USIZE long
get ukn00 long
get NEXTOFS long
get DATAFLAG long
savepos RESPOS
if DATAFLAG == 1
clog RESNAME RESPOS CSIZE USIZE
endif
math RESPOS += CSIZE
while RESPOS < RESEND
Top
Post Reply

Return to “3D/2D models”
