There are two main files inside twisted metal's main folder.
One is .VRAM and the other is .NGP.
With great effort of barti, .VRAM files are already researched.

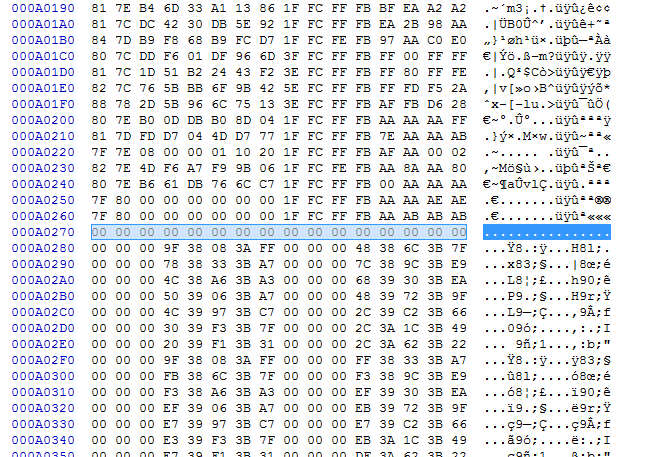

they were texture files. All textures begin and end with 16 00-bytes.
Some of them have normal, specular and even shader mask maps.
Image sizes are ranging from 32 to 2024X2024 (WidthXHeight)
Here is the code for quickbms. Approved by barti for posting.
Code: Select all
goto 112
get FSIZE asize
do
savepos OFFSET
FindLoc SIZE string "\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0\0" ""
if SIZE = ""
get SIZE asize
endif
#if SIZE = ""
# print "ERROR: No DXT5 data found"
# cleanexit
#else
math SIZE -= OFFSET
if SIZE = 5592432
math RES = 2048
callfunction exportDDS
elif SIZE = 1398128
math RES = 1024
callfunction exportDDS
elif SIZE = 349552
math RES = 512
callfunction exportDDS
elif SIZE = 87408
math RES = 256
callfunction exportDDS
elif SIZE = 21872
math RES = 128
callfunction exportDDS
elif SIZE = 5488
math RES = 64
callfunction exportDDS
elif SIZE = 1392
math RES = 32
callfunction exportDDS
else
# print "Non-standard image size %SIZE% found."
endif
math OFFSET += SIZE
math OFFSET += 16
goto OFFSET
#endif
savepos cur_off
while cur_off < FSIZE
startfunction exportDDS
set MEMORY_FILE binary "\x44\x44\x53\x20\x7C\x00\x00\x00\x07\x10\x0A\x00\x00\x01\x00\x00\x00\x01\x00\x00\x00\x00\x01\x00\x00\x00\x00\x00\x09\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x20\x00\x00\x00\x04\x00\x00\x00\x44\x58\x54\x35\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x08\x10\x40\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00"
log MEMORY_FILE2 OFFSET SIZE
putvarchr MEMORY_FILE 12 RES long
putvarchr MEMORY_FILE 16 RES long
# comment out the line below if you want to keep the alpha channel
callfunction removeAlphaChannel
append
get SIZE asize MEMORY_FILE2
log MEMORY_FILE 0 SIZE MEMORY_FILE2
append
string NAME p= "0x%08X_%i.dds" OFFSET SIZE
get SIZE asize MEMORY_FILE
log NAME 0 SIZE MEMORY_FILE
endfunction
startfunction removeAlphaChannel
math LINES = SIZE
math LINES /= 16
for i = 0 < LINES do
put -1 longlong MEMORY_FILE2
goto 8 MEMORY_FILE2 SEEK_CUR
next i
endfunction
I'am sure that .NGP files contain models for the game.(100%)
Here is the .EGG containing three .NGP files including according .VRAM files(for predicting how many models are inside .NGP files).
https://www.mediafire.com/?z76os48ri3q44oy
