 Post subject: .tga.ckd files (Just Dance 2019 for the Wii)
PostPosted: Sat Dec 29, 2018 10:38 pm
Offline
ultra-n00b

Joined: Sat Dec 29, 2018 9:52 pm
Posts: 2
Has thanked: 1 time
Have thanks: 0 time

Hello there. I've asked this on zenhax and got no response, so I'll ask here. How do you open the .tga.ckd files that are in the Wii version of Just Dance 2019? I've been looking everywhere on the internet for a solution, but couldn't find anything. Please tell me how you open them. Here's some samples: https://drive.google.com/drive/folders/ ... sp=sharing

You can make the ads go away by registering



Top
 Profile

 Post subject: Re: .tga.ckd files (Just Dance 2019 for the Wii)
PostPosted: Sat Dec 29, 2018 10:43 pm
Offline
ultra-n00b

Joined: Sat Dec 29, 2018 9:52 pm
Posts: 2
Has thanked: 1 time
Have thanks: 0 time
You can private message me if you don't feel like saying it where every person looking at the topic can see.


Top
 Profile

 Post subject: Re: .tga.ckd files (Just Dance 2019 for the Wii)
PostPosted: Mon Dec 31, 2018 12:27 pm
Offline
advanced
User avatar

Joined: Sat Sep 13, 2014 2:05 pm
Posts: 56
Has thanked: 7 times
Have thanks: 19 times
The image data has some compression I'm not aware of

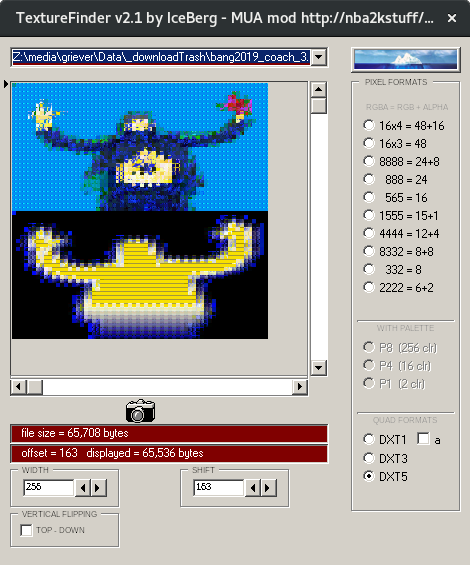

I just got two PMs asking about it- download TextureFinder (find it on web or here);
Open the image, set it to DXT5, set width to 256 and offset to 163
Offset is wrong, but it's the closest image data I can get. There are several headers hidden inside:
Code:
TEX
SDD
TTVN
AAPMC

none of those magic's are known
Real image data offset is actually 172 (from hex data)
I'm sorry I can't help more, there's some different image compression I don't know.

I could take a look at Dolphin simulator source code...

https://github.com/dolphin-emu/dolphin/ ... eneric.cpp

Code:
case TextureFormat::CMPR:  // speed critical
    // The metroid games use this format almost exclusively.
    {
      for (int y = 0; y < height; y += 8)
      {
        for (int x = 0; x < width; x += 8)
        {
          DecodeDXTBlock((u32*)dst + y * width + x, (DXTBlock*)src, width);
          src += sizeof(DXTBlock);
          DecodeDXTBlock((u32*)dst + y * width + x + 4, (DXTBlock*)src, width);
          src += sizeof(DXTBlock);
          DecodeDXTBlock((u32*)dst + (y + 4) * width + x, (DXTBlock*)src, width);
          src += sizeof(DXTBlock);
          DecodeDXTBlock((u32*)dst + (y + 4) * width + x + 4, (DXTBlock*)src, width);
          src += sizeof(DXTBlock);
        }
      }
      break;
}
