 Post subject: PT PS4 (Fox Engine)
PostPosted: Thu Dec 01, 2016 7:41 am
Offline
mega-veteran
mega-veteran

Joined: Fri Jul 29, 2011 9:18 pm
Posts: 176
Has thanked: 54 times
Have thanks: 39 times

Hello people!

The ps4 scene has decrypted PT so all files can be analized.

The backup published contains some binary files from ps4 and a big file called pfs_image.dat (1,25Gb). This big file contains practically the entire game. (So, I don't know if I can publish a download link)

pfs_image.dat contains:

sce_module
sce_sys
chunk1.psarc (fully extractable and readable)
eboot.bin
pathid_list_ps4.bin
sce_discmap.plt
texture.qar ( I don't know how to extract this file)

Here are some FPK, FPKD & PFTXS files for everyone that want to take a look.

http://download1619.mediafire.com/tkdda ... player.rar

http://download2025.mediafire.com/ymlvi ... common.rar

http://download1485.mediafire.com/rqy3j ... /start.rar

http://download1069.mediafire.com/t1ygc ... ending.rar

http://download1859.mediafire.com/31tqa ... allway.rar

You can make the ads go away by registering



Top
 Profile

 Post subject: Re: PT PS4 (Fox Engine)
PostPosted: Thu Dec 01, 2016 8:32 am
Offline
n00b
User avatar

Joined: Sun Jun 21, 2015 11:20 pm
Posts: 11
Has thanked: 0 time
Have thanks: 2 times
FPK & FPKD format is the same as MGSV, but they're encrypted like the LUA and other files. Use MGSV_ResDec and then the FPK tool. PFTXS, on the other hand, isn't encrypted.


Top
 Profile

 Post subject: Re: PT PS4 (Fox Engine)
PostPosted: Thu Dec 01, 2016 10:44 am
Offline
mega-veteran
mega-veteran

Joined: Fri Jul 29, 2011 9:18 pm
Posts: 176
Has thanked: 54 times
Have thanks: 39 times
Jonathan Ingram wrote:
FPK & FPKD format is the same as MGSV, but they're encrypted like the LUA and other files. Use MGSV_ResDec and then the FPK tool. PFTXS, on the other hand, isn't encrypted.

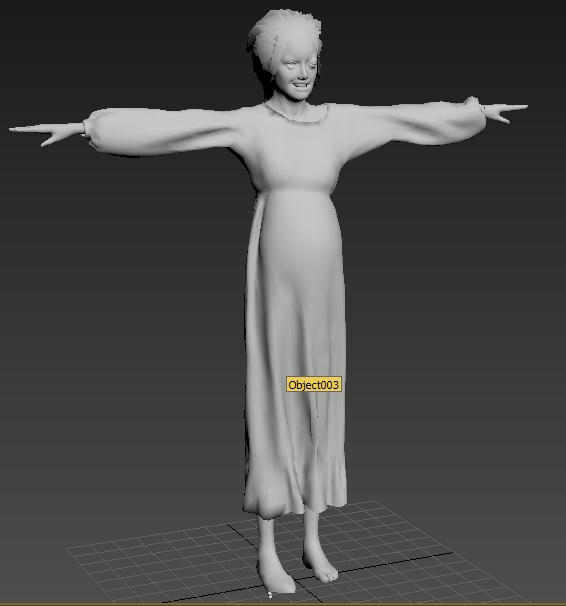

Thanks! 3d models works perfectly. Have you found a method for obtain the textures.qar file?

Edit:

A tool was published for open the PFS_Image Files, but now I can't figure out the textures.qar with correct names.

Image Image

there is a file called pathid_list_ps4.bin that can be used with MGSV_QAR_Tool but crashes.

https://github.com/maxton/GameArchives/ ... -0.7.0.zip (credits to maxton)


Last edited by luxox18 on Fri Dec 02, 2016 5:43 am, edited 1 time in total.

Top
 Profile

 Post subject: Re: PT PS4 (Fox Engine)
PostPosted: Thu Dec 01, 2016 11:58 pm
Offline
n00b
User avatar

Joined: Sun Jun 21, 2015 11:20 pm
Posts: 11
Has thanked: 0 time
Have thanks: 2 times
luxox18 wrote:
A tool was published for open the PFS_Image Files, but now I can't figure out the textures.qar with correct names.

Thanks for linking the tool. As for the QAR archive, we're probably gonna have to construct a new dictionary.txt for PT. I noticed there's a good number of files with the full texture name paths in them so I'll look around and try to identify all I can.


Top
 Profile

 Post subject: Re: PT PS4 (Fox Engine)
PostPosted: Fri Dec 02, 2016 12:02 am
Offline
mega-veteran
mega-veteran

Joined: Fri Jul 29, 2011 9:18 pm
Posts: 176
Has thanked: 54 times
Have thanks: 39 times
Jonathan Ingram wrote:
luxox18 wrote:
A tool was published for open the PFS_Image Files, but now I can't figure out the textures.qar with correct names.

Thanks for linking the tool. As for the QAR archive, we're probably gonna have to construct a new dictionary.txt for PT. I noticed there's a good number of files with the full texture name paths in them so I'll look around and try to identify all I can.


you can find all names of the textures.qar content in the file pathid_list_ps4.bin but sincerely I'm not very familiarized with fox engine


Top
 Profile

 Post subject: Re: PT PS4 (Fox Engine)
PostPosted: Fri Dec 02, 2016 2:16 pm
Offline
advanced

Joined: Fri Dec 30, 2011 12:26 pm
Posts: 53
Has thanked: 0 time
Have thanks: 37 times
Texture.qar is the same format as Ground Zeroes, except there's no encryption. Use this to unpack
Code:
MGSV_QAR_Tool texture.qar -u

Though extentions will be wrong until EBOOT.BIN is decrypted.

UPD:
Aha, so it's actually not GZ, it's PastGen TPP with one single difference.

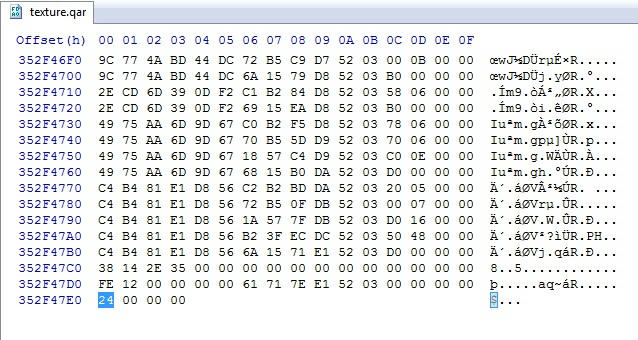

I used the last integer in the file to determine the version: 0x14 for GZ and 0x24 for TPP. However in PT this integer is set to 0x14 while the hash algorithms are TPP ones. So if you want to extract texture.qar with proper extentions change that last integer to 0x24 via Hex Editor.


Top
 Profile

 Post subject: Re: PT PS4 (Fox Engine)
PostPosted: Fri Dec 02, 2016 8:25 pm
Offline
n00b

Joined: Thu Dec 05, 2013 5:14 pm
Posts: 11
Has thanked: 2 times
Have thanks: 7 times
I don't know if it'll be usefull for you but by reading LUA files I saw:

Quote:
-- Register extension information for package creation
if EditableBlockPackage then
EditableBlockPackage.RegisterPackageExtensionInfo( {
{ "fmdl", false }, -- Drawing model data file
{ "geom", false }, -- Atari data file
{ "gskl", false },
{ "fcnp", false },
{ "frdv", false },
{ "fdes", false },
{ "gani", false },
{ "lani", false },
{ "sani", false },
{ "sand", false },
{ "evb", false },
{ "mtar", false },
{ "caar", false },
{ "uif", false },
{ "uia", false },
{ "uilb", false },
{ "uigb", false },
{ "mog", false },
{ "fclo", false },
{ "rdf", false },
{ "lba", false }, --locater binary array
{ "dmy", false }, -- Dummy file
{ "pcsp", false },
{ "ladb", false },

{ "lua", true }, -- Lua Script file
{ "sdf", true },
{ "fsd", true },
{ "lad", true },
{ "sim", true },
{ "ph", true },
{ "phsd", true },
{ "tgt", true },
{ "bnd", true },
{ "des", true },
{ "path", true },
{ "veh", true },
{ "clo", true }, -- Cross configuration file
{ "fcnpx", true }, -- Parts Builder · Extended Connect Point File
{ "vfxlf", true },
{ "vfx", true }, -- Effect / definition file
{ "parts", true }, -- Part Builder · Definition File
{ "evf", true },
{ "fsml", true },
{ "fage", true }, -- Motion graph / graph piece file
{ "fago", true }, -- Motion graph
{ "fag", true }, -- Motion graph · Route graph file
{ "fagx", true }, -- Motion graph / layer definition file
{ "aibc", true }, -- AI behavior category file
{ "aib", true }, -- AI behavior / definition file
{ "uil", true }, -- Ui Layout file
{ "uig", true }, -- UiGraph file
{ "testd", true }, -- Test file
{ "fox2", true }, -- Object arrangement / property data file
{ "fxp2", true } -- Unused
} )
end


and for peoples want to get model names
Quote:
this = {}

--Baby
Gimmick.AddPartsPath{ partName = "Baby", path = "/Assets/sh/parts/chara/bab/bab0_main0_def.parts" }
Gimmick.AddMotionPath{ key = "Baby", path = "/Assets/sh/motion/SI_game/fani/bodies/bab0/bab0/bab0_m00_020.gani" }
Gimmick.AddMotionPath{ key = "Baby3", path = "/Assets/sh/motion/SI_game/fani/bodies/bab0/bab0/bab0_m00_030.gani" }
Gimmick.AddMotionPath{ key = "Baby4", path = "/Assets/sh/motion/SI_game/fani/bodies/bab0/bab0/bab0_m00_040.gani" }

--Ocho
Gimmick.AddPartsPath{ partName = "Ocho", path = "/Assets/sh/parts/chara/och/och0_main0_def.parts" }
Gimmick.AddMotionPath{ key = "Ocho", path = "/Assets/sh/motion/SI_game/fani/bodies/och0/och0/och0_m01_011.gani" }
Gimmick.AddMotionPath{ key = "OchoStop", path = "/Assets/sh/motion/SI_game/fani/bodies/och0/och0/och0_m01_021.gani" }
Gimmick.AddMotionPath{ key = "OchoDash", path = "/Assets/sh/motion/SI_game/fani/bodies/och0/och0/och0_m01_012.gani" }

--CeilLamp
Gimmick.AddPartsPath{ partName = "CeilLamp", path = "/Assets/sh/parts/chara/lte/lte0_main0_def_v00.parts" }
Gimmick.AddMotionPath{ key = "CeilLamp", path = "/Assets/sh/motion/SI_game/fani/bodies/lte0/lte0/lte0_m00_010.gani" }
Gimmick.AddMotionPath{ key = "CeilLampStrong", path = "/Assets/sh/motion/SI_game/fani/bodies/lte0/lte0/lte0_m00_020.gani" }

--Freezer
Gimmick.AddPartsPath{ partName = "Freezer", path = "/Assets/sh/parts/chara/frz/frz0_main0_def.parts" }
Gimmick.AddMotionPath{ key = "Freezer", path = "/Assets/sh/motion/SI_game/fani/bodies/frz0/frz0/frz0_m00_010.gani" }
Gimmick.AddMotionPath{ key = "FreezerStrong", path = "/Assets/sh/motion/SI_game/fani/bodies/frz0/frz0/frz0_m00_020.gani" }

--Bag
Gimmick.AddPartsPath{ partName = "Bag", path = "/Assets/sh/parts/chara/pab/pab0_main0_def.parts" }
Gimmick.AddMotionPath{ key = "BagTalk", path = "/Assets/sh/motion/SI_game/fani/bodies/pab0/pab0/pab0_m00_010.gani" }

return this


PS bis: MtarTool work on P.T MTAR files :D


Last edited by devilsnake88 on Sat Dec 03, 2016 10:55 am, edited 2 times in total.

Top
 Profile

 Post subject: Re: PT PS4 (Fox Engine)
PostPosted: Fri Dec 02, 2016 8:27 pm
Offline
beginner

Joined: Wed Apr 29, 2015 9:05 pm
Posts: 26
Has thanked: 0 time
Have thanks: 0 time
Nice to see more being done with the files. But it seems the player.rar link is down. Might need a reupload of that one.


Top
 Profile

 Post subject: Re: PT PS4 (Fox Engine)
PostPosted: Fri Dec 02, 2016 8:49 pm
Offline
ultra-n00b

Joined: Thu Oct 06, 2016 7:17 pm
Posts: 8
Has thanked: 3 times
Have thanks: 1 time
Solidcal wrote:
it seems the player.rar link is down. Might need a reupload of that one.


Are you sure? It's up on my end, just wait a little for it to "repair" the link


Weird models that are in the files but I don't remember being in PT, anywhere:
"DOL" http://i.imgur.com/tCnUYTX.jpg
"HSH" http://i.imgur.com/Q6cYxGd.jpg 3dsMax: http://i.imgur.com/1Lo9Wg7.jpg
Don't know what they are, I don't know what they're doing here and they're odd.


Last edited by caplagrobin on Fri Dec 02, 2016 9:04 pm, edited 1 time in total.

Top
 Profile

 Post subject: Re: PT PS4 (Fox Engine)
PostPosted: Fri Dec 02, 2016 9:01 pm
Offline
mega-veteran
mega-veteran

Joined: Fri Jul 29, 2011 9:18 pm
Posts: 176
Has thanked: 54 times
Have thanks: 39 times
Sergeanur wrote:
Texture.qar is the same format as Ground Zeroes, except there's no encryption. Use this to unpack
Code:
MGSV_QAR_Tool texture.qar -u

Though extentions will be wrong until EBOOT.BIN is decrypted.

UPD:
Aha, so it's actually not GZ, it's PastGen TPP with one single difference.
I used the last integer in the file to determine the version: 0x14 for GZ and 0x24 for TPP. However in PT this integer is set to 0x14 while the hash algorithms are TPP ones. So if you want to extract texture.qar with proper extentions change that last integer to 0x24 via Hex Editor.



thanks a lot, now the extensions are correct!

also, the EBOOT is already decrypted...


Top
 Profile

 Post subject: Re: PT PS4 (Fox Engine)
PostPosted: Fri Dec 02, 2016 9:20 pm
Offline
beginner

Joined: Wed Apr 29, 2015 9:05 pm
Posts: 26
Has thanked: 0 time
Have thanks: 0 time
caplagrobin wrote:
Solidcal wrote:
it seems the player.rar link is down. Might need a reupload of that one.


Are you sure? It's up on my end, just wait a little for it to "repair" the link


Weird models that are in the files but I don't remember being in PT, anywhere:
"DOL" http://i.imgur.com/tCnUYTX.jpg
"HSH" http://i.imgur.com/Q6cYxGd.jpg 3dsMax: http://i.imgur.com/1Lo9Wg7.jpg
Don't know what they are, I don't know what they're doing here and they're odd.

Ah now it works, odd. Also I am guessing those models were maybe some of the messed up enemies that were gonna be in the full silent hills game maybe?


Top
 Profile

 Post subject: Re: PT PS4 (Fox Engine)
PostPosted: Fri Dec 02, 2016 10:26 pm
Offline
mega-veteran
mega-veteran

Joined: Fri Jul 29, 2011 9:18 pm
Posts: 176
Has thanked: 54 times
Have thanks: 39 times
caplagrobin wrote:
Solidcal wrote:
it seems the player.rar link is down. Might need a reupload of that one.


Are you sure? It's up on my end, just wait a little for it to "repair" the link


Weird models that are in the files but I don't remember being in PT, anywhere:
"DOL" http://i.imgur.com/tCnUYTX.jpg
"HSH" http://i.imgur.com/Q6cYxGd.jpg 3dsMax: http://i.imgur.com/1Lo9Wg7.jpg
Don't know what they are, I don't know what they're doing here and they're odd.


HSH model is from the first Silent Hills trailer but DOL I don't know.


Top
 Profile

 Post subject: Re: PT PS4 (Fox Engine)
PostPosted: Fri Dec 02, 2016 10:34 pm
Offline
ultra-n00b

Joined: Thu Oct 06, 2016 7:17 pm
Posts: 8
Has thanked: 3 times
Have thanks: 1 time
luxox18 wrote:
HSH model is from the first Silent Hills trailer but DOL I don't know.


It is, definitely! https://youtu.be/gY91vV0rWr4?t=1m2s It's oversized, too. Just what is it doing here...


Top
 Profile

 Post subject: Re: PT PS4 (Fox Engine)
PostPosted: Sat Dec 03, 2016 1:57 am
Offline
ultra-n00b

Joined: Sat Dec 03, 2016 1:56 am
Posts: 3
Has thanked: 1 time
Have thanks: 0 time
Sergeanur wrote:
Texture.qar is the same format as Ground Zeroes, except there's no encryption. Use this to unpack
Code:
MGSV_QAR_Tool texture.qar -u

Though extentions will be wrong until EBOOT.BIN is decrypted.

UPD:
Aha, so it's actually not GZ, it's PastGen TPP with one single difference.
I used the last integer in the file to determine the version: 0x14 for GZ and 0x24 for TPP. However in PT this integer is set to 0x14 while the hash algorithms are TPP ones. So if you want to extract texture.qar with proper extentions change that last integer to 0x24 via Hex Editor.


Could you or someone post a screenshot as to what exactly I'm editing in HxD? Thanks!


Top
 Profile

 Post subject: Re: PT PS4 (Fox Engine)
PostPosted: Sat Dec 03, 2016 10:20 am
Offline
mega-veteran
mega-veteran

Joined: Fri Jul 29, 2011 9:18 pm
Posts: 176
Has thanked: 54 times
Have thanks: 39 times
PeeTee wrote:
Sergeanur wrote:
Texture.qar is the same format as Ground Zeroes, except there's no encryption. Use this to unpack
Code:
MGSV_QAR_Tool texture.qar -u

Though extentions will be wrong until EBOOT.BIN is decrypted.

UPD:
Aha, so it's actually not GZ, it's PastGen TPP with one single difference.
I used the last integer in the file to determine the version: 0x14 for GZ and 0x24 for TPP. However in PT this integer is set to 0x14 while the hash algorithms are TPP ones. So if you want to extract texture.qar with proper extentions change that last integer to 0x24 via Hex Editor.


Could you or someone post a screenshot as to what exactly I'm editing in HxD? Thanks!





Top
 Profile

Display posts from previous:  Sort by
Post new topic Reply to topic  [ 38 posts ]  Go to page 1, 2, 3  Next

All times are UTC + 1 hour


Who is online

Users browsing this forum: No registered users and 3 guests


You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum

Search for:
Jump to:
Powered by phpBB © 2000, 2002, 2005, 2007 phpBB Group
